DALI OBERON 1 - ATLAS Sound & Vision

DALI

DALI OBERON 1

  • Sale
  • Regular price RM2,395.00

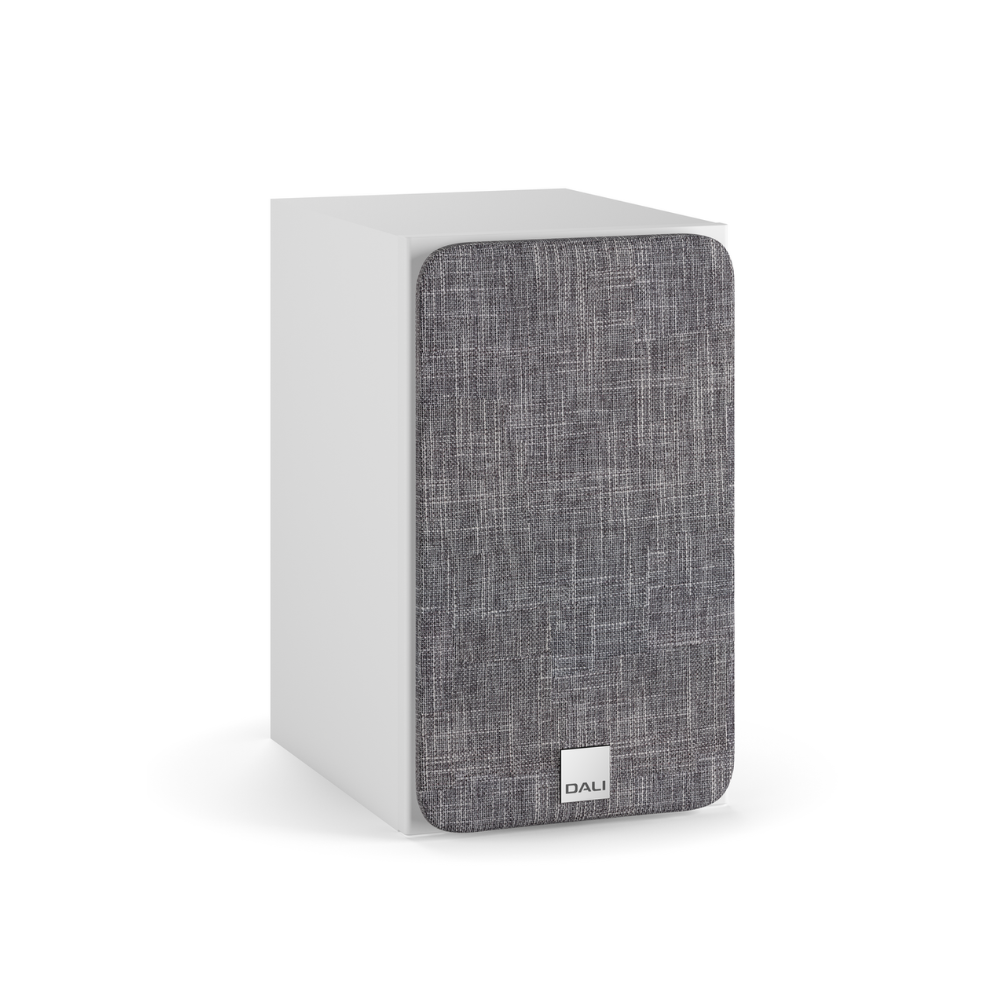

DALI OBERON 1 is an ultra-compact bookshelf speaker for smaller rooms, discreet audio setups or wall mounting. The cabinet size balances inner volume for bass performance and a compact appearance for easy integration.

EASY INTEGRATION

Well-integrated sound, even off axis.

The compactness of the OBERON 1 makes it easy to integrate into any room. The driver materials and geometry we use are purpose-designed to achieve a wide dispersion pattern. By dispersing the sound around a room more widely, what you hear has more coherent balance, consistency and quality – even off-axis. Wide dispersion also gives you more flexibility when it comes to positioning the OBERON 1.

WOOD FIBRE CONE

Revealing the minutest details

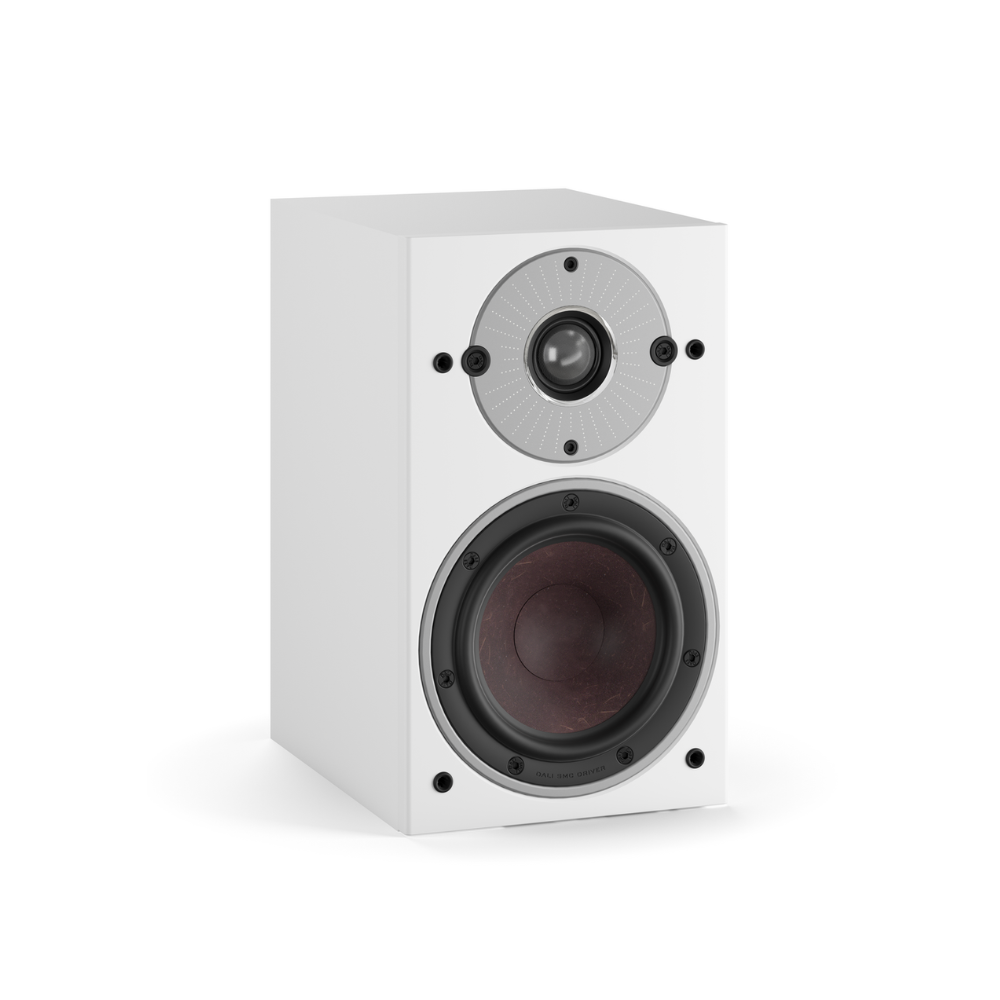

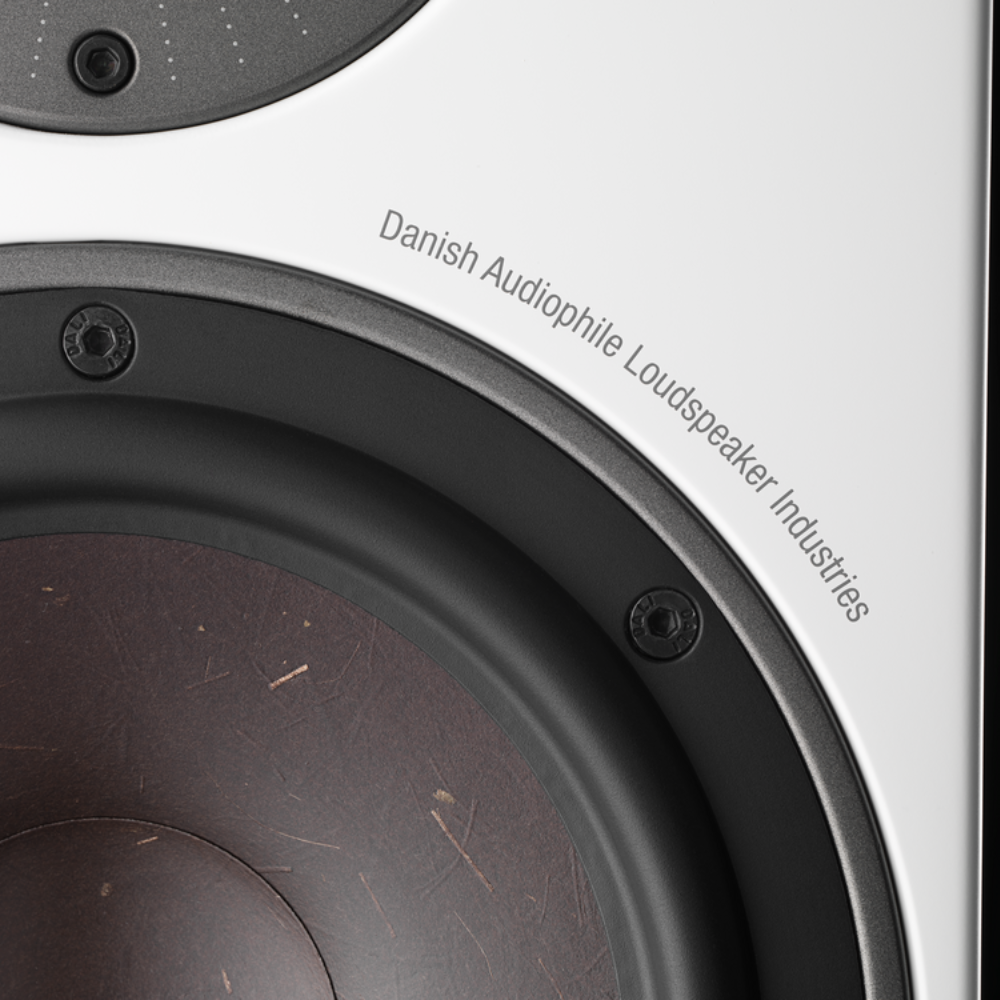

The 5¼" low loss woofer used in the OBERON 1 has been optimised with a new wood fibre structured cone dedicated to reproducing the delicate midrange and bass frequency area. Constructed from a blend of fine-grain paper pulp reinforced with wood fibres, it creates a stiff, yet lightweight structure. And when combined with the low loss surround and spider suspension, the OBERON 1 woofer reproduces the minutest details, unfiltered and with high accuracy.

REDUCING DISTORTION

DALI's patented SMC (Soft Magnetic Compound)

The use of SMC (Soft Magnetic Compound) in the OBERON 1 greatly reduces mechanical distortion caused by hysteresis and eddy currents. The result is a magnet motor system with a drastic reduction in third-order distortion, which allows the OBERON 1 to deliver extended listening pleasure, a relaxed midrange and a surprising amount of detailing in its class.

OVERSIZED SOFT DOME

Combining well-proven technologies with new features

The oversized 29 mm ultra-lightweight soft dome tweeter was specifically developed for the OBERON series, combining well-proven technologies from our existing DALI ranges with new features. The large membrane size generates higher sound pressure with less excursion, keeping the voice-coil motion to a controlled minimum. The tweeter front plate near the dome has been designed with similar geometry to the OPTICON and RUBICON tweeters to create the best possible working conditions for the soft dome. The result is extended frequency response, wide dispersion and low colouration.

OPTIMISED CABINET

Cabinet design isn't just about good looks

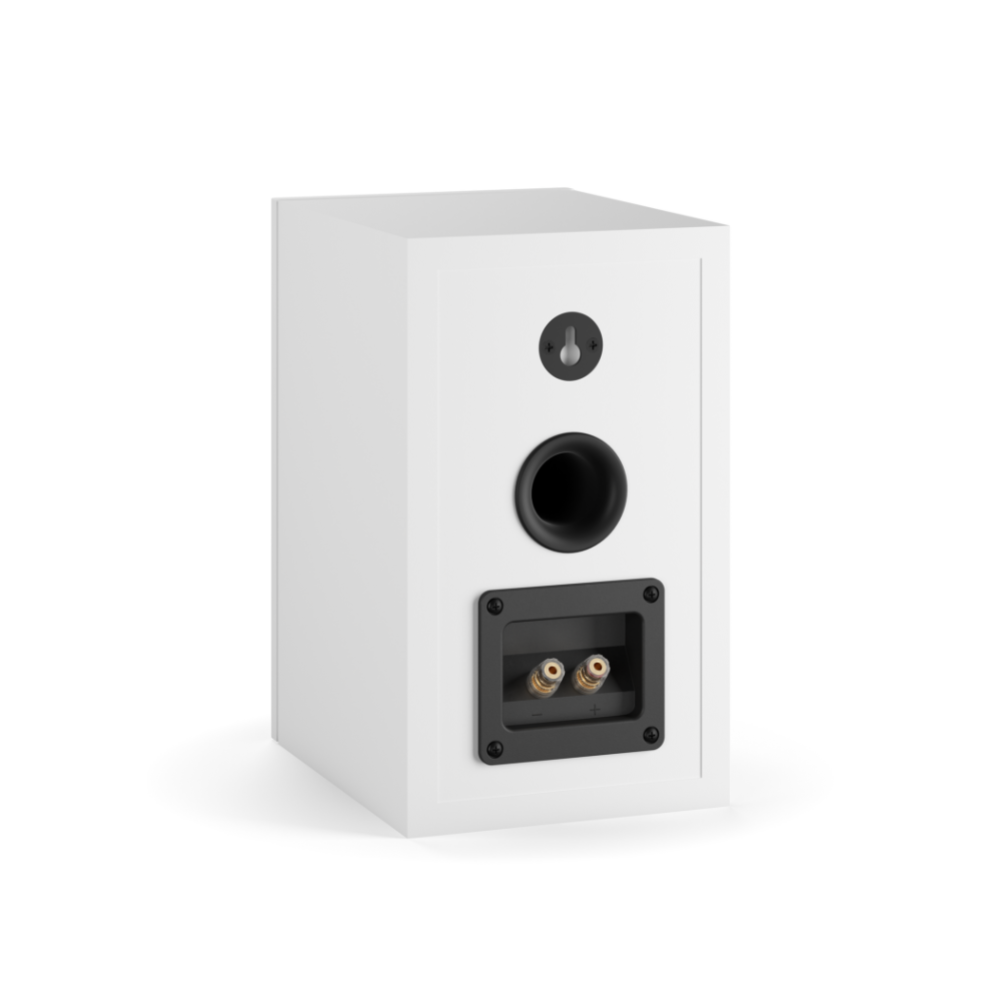

The OBERON 1 cabinet is constructed from a high density, CNC machined MDF board dressed in high-grade vinyl. The extremely rigid structure is achieved with solid bracings across the inside of the cabinet, which practically eliminates cabinet resonance. The bass ports at the rear of the cabinet optimize room integration by using a rear wall surface to improve bass performance. There's also a keyhole bracket at the back for on-wall mounting.

SPECIFICATIONS
Frequency Range [+/- 3] dB [Hz] : 51 - 26,000
Sensitivity (2.83V/1m) [dB] : 86
Nominal Impedance [ohms] : 6
Maximum SPL [dB] : 106
Recommended Amp. Power [Watts] : 25 - 100
Crossover Frequencies [Hz] : 2,800
Crossover Principle : 2-way
High Frequency Driver : 1 x 29 mm soft dome
Low Frequency/Midrange Driver(s) : 1 x 5¼"

Dimensions:
H 274mm x W 162mm x D 234mm

What's in the box:
Rubber feet
Manual
